DESCRIPTION: The dry-type transformers avoid contamination and fire risks in oil transformers; therefore, its use is aimed for office interiors, hospitals, hotels, shopping centers, plants with petrochemical or textile industrial processes or with electronic control machines and places near people or their works, where transformers are installed.
Anti-pollutant They do not pollute the environment, there are no possibilities of liquid leakage, they do not require oil drainage, nor expensive fire systems. Fire resistant. They are manufactured with insulation class "B" and "F" and "H", "Mylar" type and "Nomex", materials that may work with temperatures of 150 and 200º C respectively, self-extinguishable, non-flammable and non-explosive.
The Megger test This insulation does not absorb humidity; therefore, the dry-type transformers permanently keep a high ohmic resistance even in an extremely humid environment, preserving their excellent dielectric features every time.
Hard work cycles It has a high resistance to short circuits and resists to severe work cycles and normal overloads.
Silent The dry-type transformer performs near people so its noise level must be below 40-60 dB depending on its capacity.
Minimum maintenance Forget about the annual oil filtering or leakage cleaning. Dry-type transformers need minimum maintenance.
Special construction features.
Core. It is built with thin grain-oriented silicon steel, cold-rolled, with high magnetic permeability, M0H-M3 quality, manufactured at low flow densities to provide low losses and a minimum excitation current.
Coils Windings with copper and/or aluminum magnet wire with double insulating varnish/epoxy 220º C rectangular wire with double fiberglass liner.
Insulation Insulations up to 220ºC are placed between winding and layers. Depending on the type of insulation, these materials do not absorb humidity, do not spread flames and they permanently guarantee an insulation resistance between the windings and the core.
Temperature Winding temperature increase.
Varnishing or coating Impregnation of the assembled transformer with core and coils, in a 24-hour varnish bath, ensuring a silent operation, this improves the insulation among turns and layers and protects the magnetic core from humidity.
Connections "Kulka" or "Clema" terminal blocks strips, brass screws or copper sole-plat depending on the capacity placed on blocks of celaron or epoxy and on the upper part of the transformer.

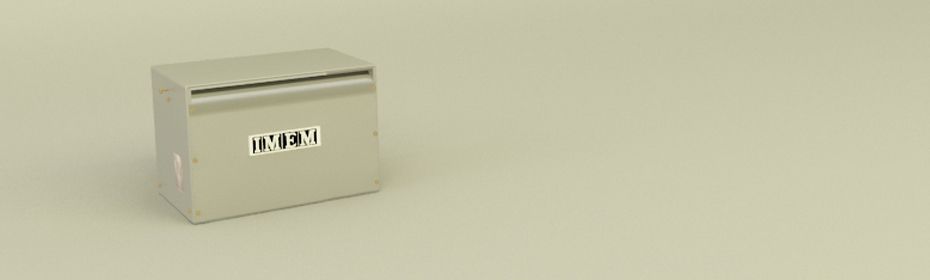

Cabinet It can be supplied with cabinets of NEMA 1 type interior service, NEMA 3 rain proof or NEMA12 metal sheet dust proof manufactured with steel metal sheet and premier finishing and ANSI61 gray color acrylic painting; or without cabinet if preferable.
Indicator plate The transformer is fixed with a data plate carved in a visible part, in plastic paper for the interior service and of STAINLESS STEEL carved for weather service, with a clear identification of terminals, windings, and voltages that shall allow a safe connection.
Tests Each transformer experiences the routine tests that ensure the compliance with the customer's requirements and a test report is generated.
Turns relationship and connections polarity.
Core losses and vacuum excitation current.
Copper losses and impedance percentage calculation.
Applied voltage to high voltage winding for 1 minute.
Insulation resistance with megohmmeter.
Total guarantee
IMEM provides a warranty for dry-type transformers against manufacturing defects and materials for one year following the shipment date.
Dry-type transformers are ventilated with "H" class insulation and are prepared for works in closed environments. Due to its safe operation, especially in case of fire, they have compact designs and are free of maintenance. Compared to other alternatives, their advantage is the low percentage of insulating materials as this decreases the toxic gases emission, especially CO.
Details and features. The customer shall specify the insulating materials, manufacturing details, coils impregnation, demanding tests, technical data and additional accessories.
Power: from 5 to 500 kva./p>
Primary voltage: 13200 v +/- 2x2.5%, 23000 v/y +/- 2x2.5%, 33000 v/y +/- 2c2.5%.
Secondary voltage: 440/254, 220/127, 575/330, 480/277, 400/230, 380/220.
Class H insulation: Insulation system 220ºC, frequency 60 HZ, 50 HZ, etc...
Ventilation: AA/natural-forced FA, delta/star, E/D, E/E, D/D connections.
Regulations: IRAM 2276-ANSIC57, 12.01-NOM-351.
If other power, voltages and other alternatives are required, please contact a salesperson.
