Description:

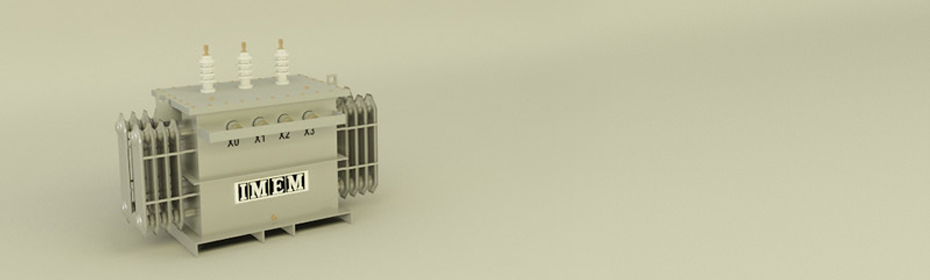

IMEM Station-type Transformers are applicable to industry systems, shopping centers and different loadings.
This is the most used transformer for the industrial electricity supplies. They are designed for the installation of outdoor service with a wide variety of high and low voltage connections, taking the flexibility of the specifications into account.
Considering all the accessories and the different arrangements, your equipment relationship can be adjusted for adapting it to your needs.
Designed to comply with the specifications of the international regulations.
Features:
Cores are column-type, built from thin grain-oriented M3-MOH silicon steel laminations with a carlite heat treatment; 3-legs core with a 45º cut and/or 5-legs shield; 0.23mm., 0.009 plg. of high magnetic permeability with insulation coating to resist an 820ºC temperature.
A.T. Coils are built with electrical conductors coated with varnish of 150ºC class and low voltage coils of electrolytic cooper or aluminum of a low electrical resistance coated with electrostatic dust ovenized with epoxic resin at 180ºC and/or paper lining to resist the oil exposure and not deteriorate its properties.
The insulation used in the coils is thermal class 120ºC formed by Kraft paper coated with epoxic resin with a diamond-shape on both sides, insulated cardboards and crepe paper.
The tanks undergo a chemical process of the surface preparation which generates the appropriate fitting for the coating and/or sandblasting with steel pellets and electrostatic painting or liquids. The NYNAS oil used is naphthenic type obtained from fractioned distillation of crude oil, prepared and refined for the use in high voltage electronic equipment.
Upon request, we can provide any insulation type dielectric liquid R-TEMP, SILICONE, non- flammable.
